Materials manufactured by Madewell^®'s are installed by our network of trained and approved contractors throughout the United States. Madewell Products Corporation also provides equipment that can be used to mix and apply these products. We offer everything from truck or trailer based platforms outfitted with complete equipment packages to individual equipment components based on customer needs. Although Madewell Products manufactures both equipment and materials, there is no requirement that they be used together. Customers are free to match products and equipment needed to fulfill job requirements. To speak with a Madewell representative regarding equipment or to receive a catalog of our equipment, please contact us.

Mortar Hoses & Nozzles

Madewell^® offers equipment for shooting mortar by hand, such as mortar hoses and a variety of wet mix shotcrete nozzle sizes and configurations:

• Medium velocity wet mix shotcrete nozzles are the most common nozzles used with Mainstay mortar mixing and pumping equipment. These nozzles increase production and provide the smoothest finish, but they require more air volume to operate properly.
• Low velocity mortar nozzles have a lower velocity compared to larger shotcrete nozzles, but they also require less air volume.

Mainstay^® Mortar Spinner

An alternative method to applying mortar to round structures such as manholes is through the use of the Mainstay Mortar Spinner. This device provides uniform application thickness and reduces material consumption and waste.

Features & Benefits:

• Increases productivity versus conventional hand spray
• Reduces the amount of time personnel are in the structure
• Increases the velocity at which the restoration mortar is applied, which increases bond strength
• Provides enhanced application uniformity resulting in reduced material usage and finishing time

Mortar Spinner Specifications:

• 1.75 horsepower air motor requires 75 cubic feet per minute at 100 pounds per square inch
• Centrifugally apply cementitious mortars to 6 foot diameter structures

Mainstay Hose Puller

Manholes as deep as 50 feet pose a unique challenge from the standpoint of accessibility. Madewell Products offers the Mainstay Hose Puller to address this challenge by mechanically lifting and lowering the spinner by the mortar hose. The unit requires only a single operator.

Mainstay^® Hydraulically Powered Mortar Mixer Pump

The Mainstay Hydraulically Powered Mortar Mixer Pump is a versatile and efficient machine that will mix, dump, and pump heavy bodied restoration mortars. It consists of a hydraulically powered 7 cubic foot horizontal shaft and a reversible 2L6 rotor/stator pump. Controls for the mixer, pump, and dump functions are located directly on the unit.

Features and Benefits:

• Hydraulic power for the mixer and rotor/stator pump provides exceptional torque for mixing and pumping heavy bodied mortars and provides long life with low maintenance.
• Ergonomic design puts the top of the mixer at the operator's waist level. The operator can perform the job with less strain and effort.
• Hydraulic cylinders lift the entire mixer unit to dump the contents of the mixer into the pump hopper with essentially no effort on the part of the operator.
• Control valves are located directly on the unit for easy access and operation. The operator has full view of all machine functions while using the controls.
• Both the mixer and pump are reversible, and both the mixer and pump are equipped with variable speed controls.
• The entire unit is powder coated a medium grey for easy cleaning and maintenance.

Pump Specifications:

• Maximum output: 1.5 cubic feet per minute (CFM), depending on material consistency
• Maximum pumping distance: 150 feet vertical; 250 feet horizontal, depending on material consistency
• Maximum pressure: 350 pounds per square inch (psi)
• Volume control: variable
• Pump direction control: reversible

Mixer Specifications:

• Mixer drum size: 7 cubic feet (practical maximum batch size is approximately 3.5 cubic feet)
• Reversible mixing blades
• Variable speed hydraulic drive
• Variable speed hydraulic pump (both directions)
• Powder coating allows easier cleaning of the equipment

Mainstay PortaMortar

The Mainstay PortaMortar allows the mortar mixer pump to be used in conjunction with equipment such as a medium to large skid steer loader. In this case, the mixer pump is powered by the loader's engine and hydraulics. This combination of equipment allows contractors to apply materials in difficult to access areas.

Optional Compressor Specifications:

• Air output: 24 CFM
• Power source: hydraulically powered

Optional Airless Spray Pump Specifications:

• Up to 5,000 psi of atomization pressure
• Removable material hopper
• Requires no external air source

NOTE: The mixer pump unit requires a separate 3,000 psi/12 gallons per minute hydraulic power supply, which is sold separately. The Mainstay PortaMortar requires a minimum 1,800 pound capacity skid steer loader.

Mainstay^® equipment packages include all the necessary components required to mix, pump, and spray heavy bodied restoration mortars; proportion and spray epoxy coatings; perform surface preparation with on-board high pressure cleaning equipment; and provide compressed air and electrical power to operate power tools, ventilation, and lighting. NOTE: These trailer configurations are for example only. Many equipment component combinations and configurations are possible. To speak with a Madewell^® representative for assistance in designing a package that suits your specific needs, please contact us.

Trailer Mounted Equipment

Goose Neck & Tag Along Trailer Packages

Goose neck trailers offer the advantage of tighter turning/backing radius, better load distribution between the trailer and the truck, and less sway. Tag along trailers do not take up space on the bed of the truck, and the tongue area offers some usable space. Trailer modules supplied by Madewell are typically outfitted with the following features:

• Two 7,000 pound (lb) axles
• Electric brakes, both axles
• 275 gallon water storage tank
• Heavy duty I beam construction
• Twin 10,000 lb jacks
• Trailer GVW of 14,000 to 15,000+ lbs
• Manufactured in accordance with National Association of Trailer Manufacturers' (NATM) standards.
• 210 cubic feet per minute (CFM)/80 horsepower (HP) diesel powered air compressor/power unit
• Hydraulically powered mortar/mixer pump
• Steel pallet rack for a single pallet of mortar (with space for hose storage beneath)
• Hydraulically powered pressure washer
• Hydraulically powered 10 kilowatt (kW) generator
• Pneumatically powered mechanical proportioner coating spray unit

Truck-Mounted Equipment

Truck-mounted equipment packages are also available. Madewell can assemble and install any of the following components on a customer-supplied vehicle:

• 210 CFM/80 HP diesel powered air compressor/power unit
• Hydraulically powered mortar mixer/pump
• 275 gallon water storage tank
• Steel pallet rack for mortar pallets
• Hydraulically powered pressure washer
• Hydraulically powered 10 kW generator

Numerous equipment components can be powered by a single source. The Mainstay^® 80 Horsepower Primary Power Unit provides hydraulic power and compressed air. Hydraulic power is delivered at 12 gallons per minute (GPM) at 3,000 pounds per square inch (psi), and compressed air can be offered up to 210 cubic feet per minute (CFM) at 100 psi.

Hydraulic power can be used to operate:

• mixer pump unit
• 5,000 psi pressure washer

Compressed air can be used to power:

• on-board diaphragm water pump
• pneumatic vibrators
• mortar spray nozzles
• airless spray pump
• centrifugal mortar spinner
• miscellaneous air powered hand tools such as chipping hammers and pneumatic drills.

Compressor Specifications:

• Hydraulic power is delivered at 12 GPM at 3,000 psi.
• Compressed air can be offered up to 210 CFM at 100 psi.
• 74 horsepower John Deere^® diesel engine

Vanair^® V210-UT Compressor (to learn more about Vanair products, please visit www.vanair.com)

Compressors are fabricated and modified based on customer needs at the Madewell^® Indiana Service Center in Winchester, IN.

Pressure Washer Module

The Mainstay^® Hydraulically Powered Pressure Washer delivers 5,000 pounds per square inch (psi) at 4.5 gallons per minute (GPM). This heavy duty pressure washer is capable of effectively cleaning and preparing surfaces for rehabilitation, and it is also useful for cleaning application equipment.

Features & Benefits:

• Maximum flow and pressure: 4.5 GPM at 5,000 psi
• Rugged hydraulically powered unit—no gasoline engine to service and fuel
• Features Cat^® 70 series triplex ceramic plunger pump with stainless steel valves
• Includes a pressure regulator, pressure gauge, bypass hose, and an on/off hydraulic valve
• Includes 50 feet of 3/8" hose, shutoff gun, and appropriately sized turbo (rotating) nozzle
• Non-marking hose with trigger gun
• Heavy duty wand with quick change tips
• Includes mounting plate/brackets, drive couplings, protective covers, and associated water and hydraulic plumbing

Optional Accessories:

• Pressure washing wand
• Fixed and turbo nozzles
• Hose reel

Mainstay Dual Turbo Nozzle Centrifugal Cleaning Device

The pressure washer can also be used to power the Mainstay Dual Turbo Nozzle Centrifugal Cleaning Device. This device is convenient for the initial cleaning of manholes and lift stations. It allows personnel to perform a majority of the surface preparation work without entering the manhole. Upon completion of preliminary surface preparation, personnel enter the structure to finish the operation.

Madewell^® Products Corporation specializes in the design and fabrication of custom fixed ratio plural component equipment for the application of 100% solids coatings of all types. As an authorized Graco^® distributor, Madewell can offer competitive pricing on standard and custom packages and components. To learn more about other Graco products, please visit www.graco.com.

Features & Benefits:

• Jacketed stainless steel material hoppers
• Material lines are insulated and heat traced with a remote mixing manifold.
• In-line material heaters
• Unique material circulation system keeps materials ready to spray at a moment's notice

Graco^® Xtreme^® Airless Sprayers

Graco Xtreme Airless Sprayers provide an economical and efficient way to apply 100% solids epoxy coatings with relatively long pot life. Madewell^® Products Corporation can provide custom stands and hoppers for these units. Units are available with conventional air motors, or Madewell can provide hydraulically powered units if a portable air source is not available or desired.

Features & Benefits:

• Graco airless pumps provide the high pressures required to apply heavy bodied, 100% solids epoxy coatings.
• These pumps are available in a variety of configurations and can be powered hydraulically or with compressed air.
• Cart-mounted pumps are the most common configuration and are highly maneuverable in tight spaces. Because they are not physically attached to a truck or trailer, they can be easily moved from one platform to another.
• Custom hinge-mounted pumps take up relatively little space on the platform and fold down for use.This feature keeps spilled paint and solvents off the truck or trailer. This configuration is theft resistant and ensures that the pump is always available when needed.
• Hydraulic power is the answer when compressed air is either not available or inconvenient. Hydraulically powered airless pumps make little noise and develop reasonably high pressures (up to 5,000 pounds per square inch, or  psi). These pumps are most often used in conjunction with the Mainstay^® PortaMortar, which is usually powered by a skid steer Bobcat^® style loader.

Airless Sprayer Specifications:

• Air powered pumps require an X60 configuration or higher.
• Hydraulic pumps are fixed at 5,000 psi.

For more information on specifications regarding Graco products, please visit www.graco.com.

<p\>

Conventional cart-mounted Xtreme airless sprayer

Custom built hydraulically powered airless pump

Custom hinge-mounted Xtreme airless pump

Mainstay Coating Spinner

The Mainstay Centrifugal Coating Spinner is a convenient tool to use when applying high build, 100% solids epoxy coatings to the interior of round vertical structures such as manholes and lift stations. This unit features two hoses: one hose carries paint to the spinning head; the other hose provides compressed air to power the air motor. The air motor, paint line, and air line are fitted inside a canvas jacket, which serves to duct the air motor exhaust out of the hole being lined. NOTE: The exhaust air contains traces of lubrication oil which may interfere with coating adhesion.

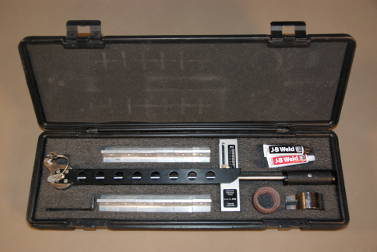

The Madewell Adhesion Tester is used to perform pull-off tests in accordance with ASTM D-7234. This device is designed to measure the adhesion of coatings applied to concrete substrates.

Features & Benefits:

• Provides an objective and accurate measurement of the adhesion of coatings over concrete

• Conforms to ASTM D-7234

• Simple and easy to use

• Set includes: 12 dollies, carrying case, 90 degree head for vertical surfaces, and step-by-step instructions (118 KB, opens in Adobe^® Reader^® in separate window)
